High-strength metal paint aluminum decorative wall panel for exterior wall decoration

Company IntroductionArrow Dragon Metal Products Co., Ltd specializes in aluminum panels, including regular wall panels (solid aluminum panels, perforated/laser cut panels), curved panels (single curved/double curved/twisted panels), honeycomb panels (aluminum/stone aluminum honeycomb panels), expanded mesh, screen panels, and ho

Featured Products

Company Introduction

Arrow Dragon Metal Products Co., Ltd specializes in aluminum panels, including regular wall panels (solid aluminum panels, perforated/laser cut panels), curved panels (single curved/double curved/twisted panels), honeycomb panels (aluminum/stone aluminum honeycomb panels), expanded mesh, screen panels, and honeycomb core (aluminum/s.s./mild steel honeycomb core). Due to our outstanding metalwork and stable coating quality, our products have been approved by architects and used in many big projects (pls find it in below Projects Reference).
Solid aluminum wall panels are made of high-quality aluminum plates, and apply PVDF/powder coating on the surface, the panels can be prevented color fading and corrosion from UV, high temperature, humidity, and atmospheric erosion.

Our 6 Main Products
High Strength Metallic Paint Aluminum Decorative Wall Panel for Exterior Wall Decoration
Specification of Solid Aluminum Wall Panel
Aluminum alloy1100, 3003, 5005, 5052
Panel thickness2.0~5.0mm or customized thickness
DimensionWidth: up to 2200mm
Length: up to 6000mm
Surface treatmentPVDF 2/3/4 Layer coating (AkzoNobel/PPG)
Powder coating (Powder/fluorocarbon powder)
Wood grain (wood grain paper/thermal transfer printing/wood grain painting)
Stone grain (stone grain painting/thermal transfer printing)
ColorPure color, metallic color, RAL color, Pantone color
ShapeCambered, bent, single curved, customized shapes
WarrantyMax 25 years guarantee for the ideal application environment

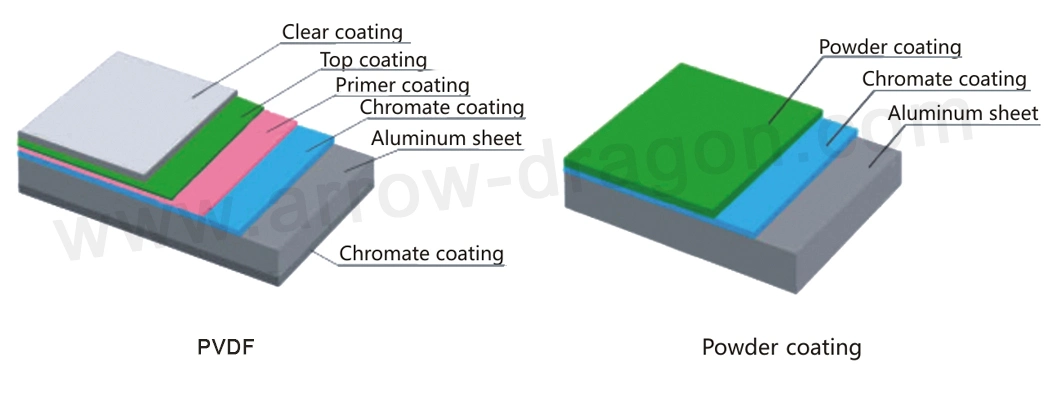

Coating layer composition of PVDF and powder coating
High Strength Metallic Paint Aluminum Decorative Wall Panel for Exterior Wall Decoration
Regular Patterns of Wall Panels

Solid aluminum wall panel: it's widely used in public places, shopping malls, commercial buildings, and office buildings.
Perforated panel/laser-cut panel: it's an ideal option for iconic buildings with the customized patterns which will leave a deep impression at first sight.

High Strength Metallic Paint Aluminum Decorative Wall Panel for Exterior Wall Decoration
Features of Aluminum Wall Panel
  1. Lightweight, good rigidity, and intensity.
  2. Good weather ability and good corrosion resistance.
  3. Can be curved with customized patterns.
  4. Three-dimensional view to match the building structure.
  5. Strong Anti-seismic and fireproof performance.
  6. High resistance to moisture and corrosion.
  7. Coating uniform, varied color choices.
  8. Not easy to stain, convenient to clean and maintain.
  9. Easy for installation and cost-effective.
  10. Recyclable, friendly to the environment.

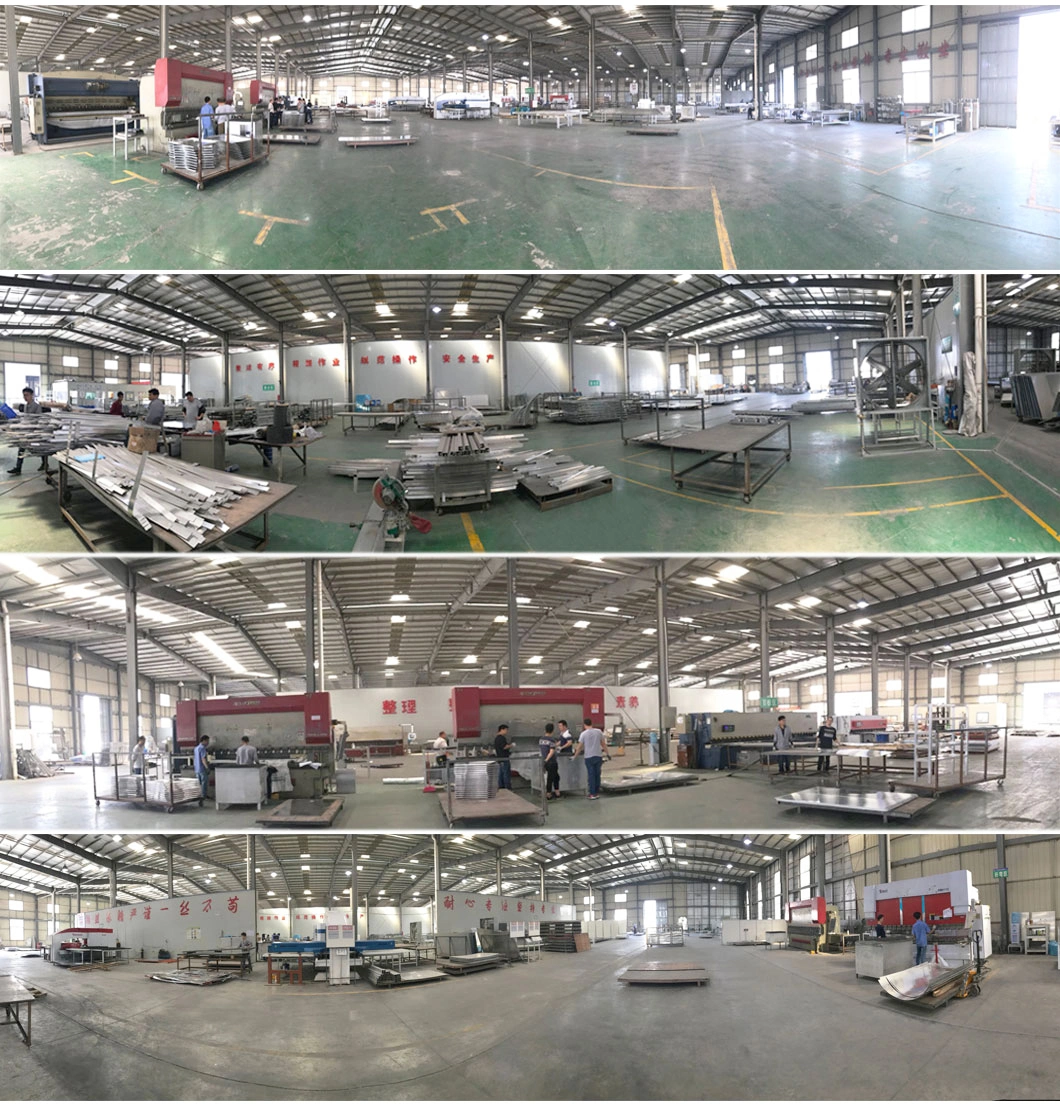

Workshop Show

High Strength Metallic Paint Aluminum Decorative Wall Panel for Exterior Wall Decoration

Production Procedure

Sheet metal procedure
Cutting/Shearing - Punching - Arcrolling - Bending - Welding - Burnishing - Rib Assembling - Rivet Assembling - Polishing - Spray Coating.
Spray coating procedure
Hanging - Skim - Alkali - Elimination (by acid) - Chromizing - Drying - Spraying (primer coating, top coating, clear coating) - Baking - Inspection.

High Strength Metallic Paint Aluminum Decorative Wall Panel for Exterior Wall Decoration

Quality Control

Chromatic aberration test: with the colorimeter to ensure the color of mass production panel matches with GB standard.
Glossiness test: gloss is a measure of how reflective material is at a specified angle based on the refractive index.
Coating thickness test: ensure average coating thickness match to KYNAR 500 standard.
Pencil hardness test: coating hardness test.
Hundred grid test: coating adhesion test, will be done before the 3M adhesive tape test.
3M adhesive tape test: after the coating is completely dry, 3M adhesive tape in painting has hundreds grid ink surface, 45 degrees quickly pulled off.
Impact test: coating adhesion test.
High Strength Metallic Paint Aluminum Decorative Wall Panel for Exterior Wall Decoration
Package & Delivery

Inner packing: film + foam
Outer packing: wooden crate, wooden crate + steel strip
High Strength Metallic Paint Aluminum Decorative Wall Panel for Exterior Wall Decoration

Application

Exterior application: wall cladding, façade, soffit, roof, canopy, tunnel, column cover or renovation, walkway roof covering, pedestrian overhead bridge roof covering.
Interior application: wall cladding, column cladding, ceiling.
Advertisement and market applications: display platforms, signboard, fascias, and shop fronts.
It also offers excellent performance on the exterior surfaces of garages, outbuildings, and similar applications where good looks are important and durability is critical.

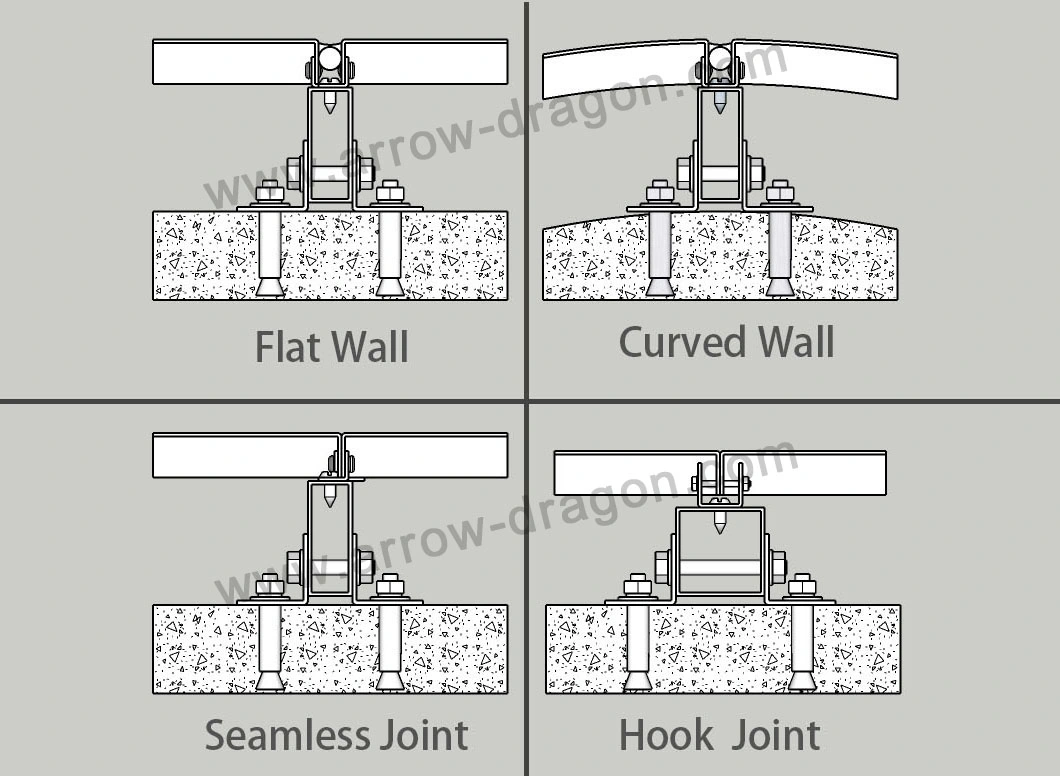

Installation Diagram

High Strength Metallic Paint Aluminum Decorative Wall Panel for Exterior Wall Decoration

Projects Reference

High Strength Metallic Paint Aluminum Decorative Wall Panel for Exterior Wall Decoration

International Exhibition

High Strength Metallic Paint Aluminum Decorative Wall Panel for Exterior Wall Decoration

FAQ

Q: Do you provide free samples?

A: Yes, samples are free of charge. But you need to offer one courier account NO. to afford the fee for sample delivery. The delivery of samples usually takes 3-5 days.

Q: Are you a factory or a trading company?

A: We are a manufacturer of Aluminum wall panel, we have our own factory in Foshan City, Guangdong Province.

Q: Is possible to make products for my brand?

A: Yes, it's possible. Please give us your brand or LOGO design, then we can make the product with your brand or LOGO.

Q: What if you send me wrong size products?

A: Shop drawing will be sent to you for final confirmation before production, if we send you the wrong size products, we will replace new products free of charge.

Q: How long is your quality warranty and after-sales service?

A: Quality warranty of PVDF/Powder Coating can be up to 25 years. We also can provide small quantity panel with the same color for damage replacement that happen in installation.
